The Ultimate Guide to Skid Steer Loaders: Everything You Need to Know

Introduction to Skid Steer Loaders

What is a Skid Steer?

You can see a skid steer loader in so many hands-on industries like construction, landscaping, and agriculture as well as probably have had the experience to either see one or even operate it. But for those still not really introduced to this world, we would like to define the term in detail.

A skid steer loader is a type of engine-powered, compact, and rigid-framed machine with lift arms allowing you to connect it to various hand-operated tools or attachments.

The machine’s steering system is done mainly by skidding the wheels, meaning that by skidding its wheels, it is steered to the right or left, ergo receiving the name “skid steer.”

It is similar to a Swiss Army knife for heavy-duty work purposes in the construction sector. As small as they are, skid steers have the ability to perform such operations as digging, carrying, moving, and leveling with high efficiency.

Mini skid steers can work in such tight spaces that cannot even be reached by larger machines this becomes a necessity for interior demolition and narrow fieldwork and landscaping that is accurate.

Besides, skid steers are very flexible tools. Changing and interchanging various accessories in just a few seconds means that the machine meets the requirements that are best suited to the tasks to be executed. Then, whether the need to move soil, grade a lot, or clean snow, this little machine does all of them.

One of the biggest motivations for a skid steer purchase is the fact that minimal training is required. Most people can practically operate this machine after only a few hours of driving, even if one has never used heavy equipment before. The skid steer has a highly intuitive and user-friendly control system.

The skid steer was in terms of design still svelte, but with greatly enhanced functionality through the years. The steer has seen manual joystick controls replaced by premium touchscreen dashboards, and the cabins have also been given the status of a controlled climate system.

Genesis and Development in Brief

The skid steer is said to have originated in the late 1950s. It first came to life when two brothers, Cyril and Louis Keller, designed a compact loader for a Minnesota turkey farmer.

The farmer required a machine to clean out a barn with low clearance and numerous corners, and the Kellers provided a solution, which would come to revolutionize the industry.

Melroe Manufacturing Company recognized the Kellers’ designing skills and purchased the design. By 1960, the first four-wheel drive skid steer, the M-400, was launched under the Melroe brand. Eventually, the company that took over this skid-steer path transformed into Bobcat, a name we all know that leads the skid steer market today.

It is undisputed that the skid steer has advanced a lot both in power and functionality throughout the history. The ones that were initially meant for low duty labor like farming are now profusely helping in high-tech construction processes and complex industrial activities with multiple stages.

With groundbreaking hydraulics, GPS controls, and even electric models in the future, skid steers have turned into incubators for a myriad of ideas and innovations, rather than just simple tools.

From the simpler days of skid steers, wherein they were just the run-of-the-mill models, today they have been reinvented as customized, all-terrain, multitasking giants.

In light of this fact, the skid steer loader is most probably performing its value demonstration activity on a work site anywhere in rural America or the midst of a bustling urban area.

How Skid Steer Loaders Work

Understanding the Skid Steering Mechanism

The term “skid steer” is not only a trendy phrase, it also describes the motion of these machines very well. As distinct from the conventional car or truck that navigates with the help of a steering wheel, a skid steer device changes its direction by means of controlling the wheels or the tracks separately on either side of the machine. This results in the wheels moving laterally and skidding on the surface while the vehicle changes its heading, thereby earning its name.

Take a shopping cart as an example. When both sides are not true to each other, the cart starts to rotate. The situation is the same with a skid steer.

The point of such a move is to counteract a space, which means that the machine can navigate in spaces that are difficult for other machines to operate in, be it room, yard or marine space.

Hydraulic System Overview

The skid steer loader’s actual engine of power is its hydraulic system and the rest is just accessories. Hydraulics is the energy that functions the lift arms, leads the wheels or tracks, and multiplies the benefits of the appliances that a skid steer loader might have. Without hydraulics, a skid steer loader would be similar to a heavy chunk of metal that is hardly of any use.

Just to give an example, the following is a simple explanation of the process: an engine sends power to a hydraulic pump, which in turn uses that power to push the hydraulic fluid through the system, i.e. hoses and cylinders.

It is that pressurized fluid which moves the lift arms up and down and works the different attachments such as augers, hammers, rape sweepers, etc..

Hydraulic flow rate is quantified in gallons per minute (GPM), and it is an essential factor when one is about to opt for attachments. High-flow hydraulic systems are capable of running heavier cutting edge power tools such as stump grinders and snow blowers, while standard flow ones are suitable for buckets, forks, and gear of no more than the middle duty category.

Another feature contributing to the success of the procedure is the amount of pressure the system creates, which usually is measured in PSI.

The greater the number of PSI, the better the performance and the stronger the equipment. Both the pressure and the flow rate are the ones determining which tasks your skid steer loader can perform and how quickly it is going to manage to do them.

It goes without saying that occasional review of the hydraulic system is something it cannot do without. Checking the fluid level, hose condition, and filters regularly, you can easily avoid any major breakdowns.

When a hydraulic line is leaking, it does not only slow down the work but in some cases, it can also be hazardous and even more expensive to repair it.

Hydraulic technology has evolved with the advancement in technology. Some of the latest models are even incorporated with electrically controlled hydraulic systems that regulate pressure and flow on their own, thus maximizing the performance and minimizing the operator’s efforts. It’s like having power steering on a car.

Types of Skid Steer Loaders

Wheeled Skid Steers

Wheeled skid steers are the original and most common type of skid steer loader. The four tires which are incredibly tough terrain are characteristic here.

This makes them suitable for the maneuverable and high performance on flat, solid surfaces such as concrete, asphalt, or packed dirt. They are typically used on construction sites, warehouses, and landscaping projects where traction is not a major issue.

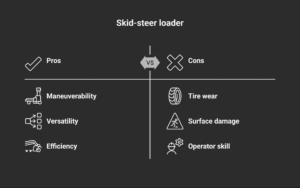

What is it that makes the wheeled skid steers so crowd-pleasing? Primarily, the fact that they are quicker on flat terrain. Traveling is faster due to the tires, hence time-saving.

The increased speed and fuel efficiency guarantee that work is done on time and budget is upheld. Secondly, wheeled skid steers, in general, are affordable both from the point of view of the price and that of the maintenance.

Tire replacement is usually cheap and convenient in comparison with a situation where one needs to cope with a rugged-out and costly track system.

But if you think they are fail-safe – you are wrong. Wheeled skid steers are not so good when used in the condition of mud, snow, or sand. In such circumstances, the wheels might be spinning and sinking thus reducing work output and increasing irritation. When these terrains occur, most of the operators choose the track versions that are more stable and have a better grip.

In any case, despite all the drawbacks, the contractors who are in control of the situation find wheeled skid steers a more flexible choice.

Included in the package are the skills of a wheeled skid steer to make sharp turns, to accelerate rapidly, and generally be more responsive than track-equipped units on solid ground.

Your indoors demolition, pallet lifting, or driveway leveling tasks are where a wheeled skid steer can be the easiest and most useful to have around.

When it comes to the maintenance, checking the wheel’s alignment, tire pressure, and routine wheel rotations are essential. However, observing the wear of the tread is not less important. If a skid steer has wheels without tread, they will slip—which will in turn lead to a loss of control of the vehicle.

On the whole, wheeled skid steers are a great and reasonable choice for a range of different jobs. They are one of the workhorses of the fleet—agile, powerful, and speedy.

Tracked Skid Steers

Tracked skid steers, aka compact track loaders (CTLs), are designed for optimum grip in difficult environments. The rubber tracks on the skid steer help it to push the trees down without kicking them off.

These vehicles have the advantage of not sinking whether in the mud or sand as the tire pressure is distributed on a larger surface and cannot sink.

What makes a user opt for a tracked skid steer? It’s quite obvious—stability and traction. When challenged with muddy work sites, snow-packed roadways, loose rocks, or a steep uphill, the machines with tracks emerge as the superior of the two.

That is to say, a greater portion of the weight of the vehicle is carried by a larger contact area, which is also responsible for the decrease of the pressure on the ground and hence, the non-sinking feature of the machine. These machines are also very instrumental in landscaping, construction, as well as forestry.

Furthermore, a major upside of the device is the machine’s capability to run on a bumpy or uneven terrain smoothly. The tracks of rubber make the absorption of the impact of more force possible, thus, the ride is not only stable but also more comfortable.

This, in turn, can help in the prevention of the rough handling of damaged surfaces such as the lawn or the landscaped yards, thus the tracked skid steers are mostly used for the privately owned areas as well as the golf course. It is a loved machine in these cases.

Despite all these, the tracked skid steers have some negative sides. For the most part, they are more expensive to purchase as well as to maintain.

The rubber track is damaged at a much faster rate if the machine is used on surfaces such as concrete or tarmac, with the cost of replacement sometimes reaching up to a few thousand dollars.

Also, they are relatively slow, and their fuel consumption is higher, all due to the increased weight and the resistance caused by rolling.

Skid Steer Loader Attachments

And yet, tracked skid steers are the only choice for tough or difficult conditions although these drawbacks exist. When cutting ditches in the marsh, removing snow from such roads, pushing sand over a loose area, etc. these machines will be there to provide the grip and power required.

Maintenance, besides meeting the regular inspection of the undercarriage, the trUpdated 1 year ago ack tension adjustments, and the debris cleaned out to avoid gradual wear and tear, includes various types of consumables.

In the event of continued ignorance of the latter steps, the sine qua non is that high costs in repairs and the shutdown of the machine can be predicted.

On an unpredictable, dirty, or lost track job site, a tracked skid steer remains a facility and an essential tool for the job.

Common Attachments and Their Functions

What cutting-edge technology does a skid steer have that is so special? To answer that question, let’s take a look at its attachments. The vehicle is nimble and can be the right number of machines by itself with the huge diversity of extensions that allow it to perform much more than just a variety of tasks like scooping dirt.

Without diving too deep, here are the introductory attachments:

• Bucket – The one fitted with which the earth, concrete, or any other materials American Sign Language makes excavating, raising, and discarding easy. The earth and gravel are the basic materials for the trench (soil, gravel, debris).
• Pallet Forks – Equipment is the must-have tool to handle bulk cargo. This could be brick pallets, bags of cement, or other construction material.
• Auger – The best implement for drilling holes for the positioning of the fence, as well as the trees when planting or doing the footings of the ground.
• Grapple Bucket – This equipment takes and holds bulky, heavy articles e.g., pieces of wood, large stones, and different types of waste generated in construction.
• Trencher – Equipment which is used for the digging of the narrow channels e.g. in the trenching process of crops or in the placement of utility lines.
• Snow Blower – A necessity for the winter climate when it comes to clearing the pavement from snow and ice.

Every attachment enables your skid steer loader to perform a variety of tasks in different industries. The switching of attachments is quite convenient because modern quick-attach systems do not require any tools, heavy lifting, or time.

The attachment should work with your machine’s hydraulic system. Machines with high power, such as mulchers and hydraulic hammers, should have a high-flow hydraulic system, and the other attachments could work with the regular flow.

If an attachment that you are using is not suitable for the operation that you are performing with the machine, it can reduce the operational performance, or even worse cause damage to the machine. So check the compatibility and follow the manufacturer guidelines.

Attachments do not only speed up the work process but also save labor. A single skid steer with the correct attachments can carry out the work of a whole team in some scenarios and this can lead to an increase in efficiency and reduction in labor costs.

It is the reason why buying attachments is regarded as a more strategic and cost-effective method of dealing with a one-time purchase of several machines.

Special Attachments for Special Jobs

On the other hand, there are specialty attachments which were made to serve specific and custom needs. These special tools can turn your skid steer loader into a Swiss army knife of the construction world.

For example, the following are just a few of those tools:

• Forestry Mulchers – They are typically used to clear the land by chewing through brush and small trees.
• Cold Planers – These are necessary for ridding the roads of the asphalt or concrete and thus are vital for the roadwork and maintenance.
• Hydraulic Breakers – Commonly known as jackhammers, they are used to crush concrete, rocks, or pavement.
• Concrete Mixers – Mix and easily pour your own concrete from a skid steer, a much simplified procedure for small constructions.
• Brooms and Sweepers – Perfect for cleaning construction sites, parking lots, or streets.
• Landscape Rakes – Perfect for leveling soil, picking up debris, and preparing lawns for sowing or sodding.

Professionals in the industries such as municipal work, road construction, forestry, and utility maintenance rely heavily on these tools. Contractors can benefit from adding specialty tools to their organization for gaining additional revenue sources and can also enhance the efficiency of municipalities and utility companies.

Moreover, there are also some manufacturers that provide attachment combinations, such as a bucket with integrated grapple arms, or a tiller that can also be used as a leveller. These tools that are a combination of two types are space-efficient and at the same time make the job easier.

If you’re not catching this, you’re likely using your skid steer wrongly and aren’t maximizing its potential. Adding special attachments to it can turn it into a multi-tasking, flexible and mobile unit capable of handling a wide variety of tasks without the need for different machines.

Key Features to Consider When Buying a Skid Steer

Engine Power and Capacity

When purchasing a skid steer, engine power is the first thing to look at when it comes to the machine’s specs of performance. It’s not just a benchmark; it has a direct bearing on the equipment’s operation, particularly if you are working with heavy loads, cumbersome attachments, or hard terrain.

Skid steer engine power is generally rated according to horsepower (HP). The smaller units have about 50-70 HP and are just right for light work such as landscaping or moving of lightweight materials.

Mid-range machines on the other hand are rated between 70-90 HP, and this allows for more versatility and thus a variety of tasks can be accomplished. Heavy-duty models can have over 100 HP and are meant for serious construction, demolition, or industrial work.

Developing high horsepower is not the sole justification. An individual should also examine the engine’s torque and displacement. High torque signifies the machine can preserve its strength while under load, whereas a large displacement generally guarantees better performance when the equipment is exposed to continuous stress.

You should also take into account the fuel type–most skid steers use diesel which is good for torque and fuel economy in comparison to gasoline. Diesel engines are also expected to have a longer service life if properly maintained so they are, therefore, a wiser choice for situations where extended use is expected.

Additionally, one ought to be well-versed with emission standards. A great number of modern machines comply with regulations stated in Tier 4 Final, meaning they do not give off a high level of pollutants.

Usually, such machines are fitted with super-modern exhaust after-treatment systems like diesel particulate filters (DPFs) or selective catalytic reduction (SCR) systems.

Picking a skid steer with a suitable engine size reinforces that your machine is not put on overdrive, while it gets the job done as you expect, with no damage to your wallet.

When a machine lacks enough power, it can fall back or overly tire you out. When there is more power than needed, it means the cost of fuel consumed is higher and therefore more than necessary.

To sum up, avoid just selecting the biggest engine without considering other elements. Select the right one based on your workload type, environment, and expectations for the future.

Operating Load and Lift Height

Operating load and lift height are two major skid steer specifications that you take into consideration when buying a skid steer. The two numbers mentioned above tell you the weight the machine can lift (safely) and the height it can lift to which are crucial when transportation, dumping, and working on tight corners.

Operating load (also known as the rated operating capacity (ROC)) is generally about 50% of the machine’s tipping load—the weight at which it becomes unstable. The ROC figure can vary from a range of 1,300 to 3,400 pounds, depending on the skid steer’s size. When you are carrying a load of bricks on a pallet or a full bucket of gravel, you definitely need a larger ROC.

Lift height is another extremely critical parameter. There are two primary lift paths: radial and vertical.

• Radial lift machines describe a sweeping arc when they carry the load which reaches their maximum mid-zone—quite perfect for digging or for ground-level work.
• Vertical lift machines are just the opposite, they ascend straightly, going up in the air, delivering longer reach and steadiness for unloading trucks or forklifts stacking pallets.

If you are constantly unloading into high-walled dump trucks or placing content on high platforms, then a vertical lift machine is clearly a better choice.

It is also essential to take into account breakout force, a value that represents the force lift arms can apply. Higher breakout force means the machine can push through heavy or densely compacted material without any decrease in power.

In summary, you shouldn’t just pay attention to the amount of weight the skid steer can lift but also take into account how high reliably and effectively it can do it. These elements will decide the level of your productivity throughout the workday.

Differences between Skid Steer Loaders and other Machinery

Skid Steer vs. Mini Excavator

Deciding on a skid steer or a mini excavator should be based on the work at hand as it’s not a question of which one is better but rather which one is more appropriate for your task. Two devices can give the same size, easy handling, and hydraulic force but they are features of the completely different jobs.

Convenience is the top-notch quality of skid steers. By choosing the correct attachments, it is capable of performing almost any task such as digging, grading, lifting, hauling, and even snow removal. It’s a sort of wheel-based Swiss Army knife.

Skid steers move quicker, have greater travel speeds, and carry out work above the surface or anything that needs regular repositioning in a better way.

A mini excavator, for example, is specialized in digging. It is the best solution to perform underground pipe works, and the operator handles an attached bucket in a rotating cab at arm’s reach.

These versatile machines can dig faster and more comfortably to each side without having to constantly relocate the whole machine. This is definitely the excavator to hire if you have to manage this sector of the construction site.

Most of the time, skid steers are the cheaper option when it comes to the initial payment and the versatile nature of these machines usually gives a good rate of return to general building contractors or gardeners.

Pricey as they may be, mini excavators are straightforwardly precise and hence are irreplaceable when it comes to jobs like installing the plumbing system, checking for drain issues, or pulling out stumps.

In short, choose a skid steer if you want a machine that has speed, surface versatility, and attachment variety. Moreover, when the main thing you want to do is deep dig or have precision excavation done, then a mini-excavator is for you.

Skid Steer vs. Backhoe

While both skid steers and backhoes are frequently seen in construction and agriculture, they are used for different tasks and are distinguished by the points where each of them performs especially well.

A skid steer is small in size, high on flexibility, and, above all, it can outpace and outperform its competitors. Owing to its lightness, the skid steer can reach the places where a bigger one wouldn’t stand a chance, and the number of attachments the quick attach system allows you to use is quite big. It is generally used for tasks such as urban jobs, interior demolition, grading, and material transport.

On the other hand, the backhoe is a machine that has both a front loader and one backhoe arm. It can be used on the jobs that are big and that require substantial digging and excavating capability.

Backhoes are more powerful and have a longer reach, to carry out tasks like deep trenching, lifting heavy materials, and utility work more easily and quickly.

While the skid steer is excellent for its versatility and speed, its counterpart the backhoe has won the race by its high digging power and efficiency as a multifunctional machine. In addition, the backhoe is quite large and therefore is not easy to maneuver in tight spaces, and it also costs more to run.

To put it in a nutshell: you can opt for a skid steer, which is a light, multi-functional machine, if you have different jobs to do. If your main task is to dig deep and lift extremely heavy materials, especially in places that are wide open, you are supposed to consider a backhoe.

Skid Steer Loader Brands and Models

Big Names of the Industry

It is true that the brand of the skid steer loader plays a very important role. Reputable manufacturers not only provide the machines but they also provide reliability, performance, support, and the machine’s resale value. Let’s identify and discuss the most powerful players in the field.

• Bobcat – Often known to be the pioneer of skid steers, Bobcat is as powerful as ever and is one of the brands that continue to be market leaders. Bobcat is good at making innovative, tough machines and offers a great variety of attachments. The durability and the ease of operation are what the Bobcat brand stands for.
• Caterpillar (CAT) – CAT’s skid steers are highly regarded for their great structure quality, hydraulic power, and operator comfort. They are equipped with the latest technologies and their dealer support network is also a big plus.
• John Deere – It is not only a big player in the agriculture industry, but also a leader in the skid steer field. John Deere skid steers promise huge durability and excellent compatibility with farm machinery.
• Case – Being a combo of immense power and an easy interface is what makes Case unique. Their machines are popular because of their high lifting capabilities and a wide view inside the cab.
• New Holland – The cabs of New Holland have the reputation of being comfortable and, at the same time, the equipment has a great lifting capacity. With these features, the New Holland units have a very large customer base among landscapers and utility workers.
• Kubota – Kubota is the name that can be connected to small, reliable and solid skid steers and is gaining in popularity. It is easily seen that Kubota skid steers sit at the top ranks especially in the hearts of the small contractor and farm operator communities.

The emphasis of these brands is on their unique features, price positioning, dealer support and customer loyalty. However, the main factors are the availability, after-sale service, and individual decision.

Best Practices For Operating A Skid Steer Loader

Safety Guideline

Mastering the art of skid steer operation is not a tough job, but if we deal with safety regulations lightly, we are definitely putting our lives at stake. These are compact machines but misuse can lead to serious injuries and damages.

The following is a list of the most important safety practices:

• Wearing a seatbelt and ROPS-certified harness is absolutely a must.
• Walk around your machine and go through a checklist before commencing work with it.
• Check for leaks, loose hoses, or damaged tires/tracks.
• Don’t go beyond the load limit of the machine.
• Keep the people not working on the machine at a safe distance.
• Wherever possible, operate the machine on the flat ground.

• Connect the attachment that is suitable for the task.
• Exit the machine and ensure the machine is locked properly while leaving the seat.

Furthermore, be extra cautious about the visibility of the place. If there are any mirrors or cameras provided to you, use them. When driving, maintain a low load location to prevent a capsize. And always use three points of contact when getting in and out of the cabin.

Having the most remarkable safety guidelines goes hand in hand with being oblivious of what is happening; hence resulting in unsafe actions and disasters.

Advice for Efficient Operator

Speed isn’t the only measure of efficiency, intelligence is. Experts can maximize the productivity of a small-sized skid steer without consuming fuel, wasting energy, or causing wear to the machine.

Some specialist tips are:

• Plan your travel route ahead of time. Keep the number of turns and travels to a minimum. Prepare a suitable route that will allow you to achieve maximum efficiency without using unnecessary movements.
• Always adjust the machine in a smooth and precise manner. The quick and sudden motion of the machine may ruin the components, lead to hydraulic overloading, and make the job look terrible.
• Ensure the right tool is chosen and it is properly set up. Select the tool compatible with the hydraulic setting.
• Load and unload from the machine effectively. Have an accurate judgement and make sure the bucket or the attachment is filled to its full capacity though do not overload.
• Be accurate. Figure out how to soften the controls for the purpose of making minor movements, and it will help you in space or precision grading work.

It is a good idea to learn how to use simulators or how to go through the training that numerous producers provide their customers. One will get benefits in the form of saving hours, reduced wear and tear, and higher job performance by investing his or her time in education.

Maintenance and Care Tips

Daily Maintenance Checklist

Setting up a simple yet efficient habit is what makes your skid steer the first person you can lean on. Below is a daily checklist of things that will help you kickstart this habit:

• Get used to checking the levels of the engine oil and hydraulic fluid each day.
• Check if the airflow is smooth and clean, and make sure the air filter is not dirty. If so, renew it with a new one.
• Do a visual inspection for water or oil leaks and check if there are any damages.
• Ensure that the car headlights, beepers, and other warning lights are functioning properly.
• If there’s anything worn out on tires or tracks, such as punctures or cuts, dispose it and replace with a new one.
• Through visual examination, check if the attachment couplers are well-fitted.
• Apply grease on the moving parts and the pipes connected to the hydraulic system. This will prevent the rusting of the parts.
• Cleaning away any rubble, entrails, or the like from the undercarriage and any vents involved is very necessary.

The 10-minute make ready will spare you a lot of standstills and definitely provide the additional benefit of prevention, safety, and life expectancy of the equipment.

Long-Term Maintenance Practices

It goes without saying that apart from the obligatory daily checks, there is a need to stick to long-term maintenance practices that include regular scheduled service intervals and deep inspections. Here are a few:

• Engine oil should be changed every 250 hours of usage or as recommended by the manufacturer.
• Hydraulic fluid should be bled and filters should be changed regularly, as well as dealing with the contaminants.
• Regular flushing of the coolant requires a period of 1000 hours or a year.
• For perfect running conditions, it would be good to adjust the track tension.
• Also, confirm the battery is still good and in good contact with terminals by checking it and cleaning the terminals.

Today, a lot of operators update their service logs with each maintenance cycle or use apps with a specific maintenance feature. On the other hand, some current skid steers have telematics devices that tell the operator when a service is approaching.

The benefits of regular service include efficient machine operation and preventing costly failures. Information on the service history of the machine is something that would help you get a higher resale value upon the sale or trade-in of your machine later.

Summary

Skid steer loaders are the most flexible and productive technology inventories at any construction site. Moving, lifting, grading, or digging, they have all these functions, that’s why no other machine can compare to them in terms of a concrete occupational niche in a limited space. With the right tools, one machine that is properly prepared is capable of replacing a handful of dedicated machines altogether.

Every single detail, from your choice between track and wheel skid steers, to the understanding of hydraulic flow and cab technology, makes a difference.

The best skid steer for your job changes according to the kind of terrain, the necessary load, and the frequency of the usage. Not only should the technical options be taken into account, but also the matters of comfort, safety, and maintenance support.

More than that, remember the significance of practical operation and proper training that will supplement your investment in high returns. Be it that you are a contractor, landscaper, farmer, or an industrial operator, the right-choice skid steer can be the engine of your operation.
